PST Twin Seamer Ball Caster Table

PRODUCT DESCRIPTION

The Twin Seamer Ball Caster Table works in conjunction with the Dry or Wet TS106 Glass Twin Seamer. The table makes twin seaming easy since it supports the weight of the glass, allowing the operator to seam all four glass edges quickly without fatigue.

FEATURES

Table Top Frame is fabricated from 2" x 2" heavy wall tubular steel. The ball casters are mounted onto the top frame. The casters are 2" diameter nitrile ( Buna N ) spherical balls and the overall height of the ball caster ( spherical ball and ball holder ) is 2 5/8". Nitrile spherical caster balls will not scratch the glass. Construction of top frame is all MIG welded.

Table Top Frame is fabricated from 2" x 2" heavy wall tubular steel. The ball casters are mounted onto the top frame. The casters are 2" diameter neoprene spherical balls and the overall height of the ball caster ( spherical ball and ball holder ) is 2 5/8". Neoprene spherical caster balls will not scratch the glass. Construction of top frame is all MIG welded.

Table Legs are fabricated from 2" x 3" heavy wall tubular steel. Each leg is equipped with a built in 1 1/4" diameter threaded jack bolt for adjustable height capabilities. The legs are removable and attached to the table top frame with bolts. These adjustable legs allow the user to level the table without floating the floor or using shims.

Standard Table size is 50" x 98" and is fabricated with a 14" x 22" operator cutout on one side of the table. This cutout is designed to give the operator closer access to twin seamer when edging smaller sized glass lites. Table can also be provide with a machine insertion 14” x 8” cutout on the side opposite the operator cutout.

Table is available with ball casters mounted on either 6" x 8” or 12" X 12" centers.

*Table is shipped knocked down to reduced freight expense and to reduce the chance of damage during shipment.

Requires minor bolt on leg assembly before use.

Ships FOB Dallas, TX

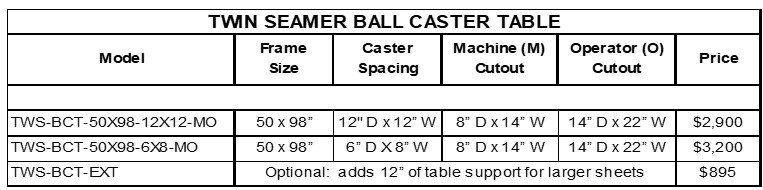

TWIN SEAMER BALL CASTER TABLE
