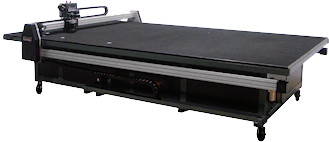

ACULITE ECONOCUT CNC GLASS CUTTING TABLE
PRODUCT DESCRIPTION
FEATURES
The Aculite Econocut scores at a speed of 3,000 inches per minute ( 50+ inches per second ) and accelerates at 85” per second to reach maximum cutting speed in about ½ per second. The Aculite Econocut is equipped with 3-Axis positioning for square, rectangular & shape cutting capability with X/Y/Z direction scoring
This CNC high precision glass cutting machine scores to maximum sheet size of 72” x 130” & 84" x 130" and is equipped with built in glass pneumatic pop up positioning stops, cuts to tolerance of +/- 1/64” and scores single strength to 3/8” thick glass ( 2 mm to 10 mm ).
The Aculite EconoCut is driven by a high resolution/high torque digital Servo motor system and is equipped with 3 HP air flotation system.
MECHANICAL FEATURES
Fabricated from heavy duty all MIG welded steel construction from 3” x 2” & 3" x 3" heavy wall tubular steel.
SOFTWARE FEATURES
Licensed Aculite software is provided with each system at no additional cost. This high yield software optimizes glass usage over multiple orders, glass sheet sizes and types. The user friendly menu entry library contains twenty two + geometric shapes. All system operating functions are software set, eliminating most mechanical adjustments. Aculite software is equipped for standard DXF file scoring.
ADVANTAGES
The Aculite Econocut is a low capital cost system. There are no other CNC cutting tables in the market place in this competitive price range. The Aculite Econocut is highly productive for small glass and mirror fabricators or IG window manufacturers. Optimize cut squares, rectangles and shapes quickly and accurately allowing for increased production compared to hand cutting. Glass yields are 10 to 20 percent greater than that obtained by non-optimized hand cutting.
SPECIFICATIONS
Maximum score speeds of 3,000 per minute (50+ inches per second)
Accelerates at 85 inches per second/second
Reaches maximum cutting speed in about ½ of a second
3-Axis for full geometric shape cutting for XYZ direction scoring
Built in glass pneumatic pop up positioning stops
Cuts to a tolerance of +/- 1/64”
Scores single strength to 3/8" thick glass (2 mm to 10 mm)
Driven by a high resolution/high torque digital step and direction Servo Motor system
OPTIONS
Available to score sheet sizes of:
72” x 130”
84” x 130”
Ships FOB Dallas, TX
© COPYRIGHT 2014 ALL RIGHTS RESERVED PERFECT SCORE TECHNOLOGIES
The Aculite Econocut is a CNC precision glass shape cutting table designed for small glass and mirror fabricators or IG window manufacturers.
FEATURES
The Aculite Econocut scores at a speed of 3,000 inches per minute ( 50+ inches per second ) and accelerates at 85” per second to reach maximum cutting speed in about ½ per second. The Aculite Econocut is equipped with 3-Axis positioning for square, rectangular & shape cutting capability with X/Y/Z direction scoring
This CNC high precision glass cutting machine scores to maximum sheet size of 72” x 130” & 84" x 130" and is equipped with built in glass pneumatic pop up positioning stops, cuts to tolerance of +/- 1/64” and scores single strength to 3/8” thick glass ( 2 mm to 10 mm ).
The Aculite EconoCut is driven by a high resolution/high torque digital Servo motor system and is equipped with 3 HP air flotation system.
MECHANICAL FEATURES
Fabricated from heavy duty all MIG welded steel construction from 3” x 2” & 3" x 3" heavy wall tubular steel.
SOFTWARE FEATURES
Licensed Aculite software is provided with each system at no additional cost. This high yield software optimizes glass usage over multiple orders, glass sheet sizes and types. The user friendly menu entry library contains twenty two + geometric shapes. All system operating functions are software set, eliminating most mechanical adjustments. Aculite software is equipped for standard DXF file scoring.
ADVANTAGES
The Aculite Econocut is a low capital cost system. There are no other CNC cutting tables in the market place in this competitive price range. The Aculite Econocut is highly productive for small glass and mirror fabricators or IG window manufacturers. Optimize cut squares, rectangles and shapes quickly and accurately allowing for increased production compared to hand cutting. Glass yields are 10 to 20 percent greater than that obtained by non-optimized hand cutting.
SPECIFICATIONS
Maximum score speeds of 3,000 per minute (50+ inches per second)
Accelerates at 85 inches per second/second
Reaches maximum cutting speed in about ½ of a second
3-Axis for full geometric shape cutting for XYZ direction scoring
Built in glass pneumatic pop up positioning stops
Cuts to a tolerance of +/- 1/64”
Scores single strength to 3/8" thick glass (2 mm to 10 mm)
Driven by a high resolution/high torque digital step and direction Servo Motor system
OPTIONS
Available to score sheet sizes of:
72” x 130”
84” x 130”
Ships FOB Dallas, TX
© COPYRIGHT 2014 ALL RIGHTS RESERVED PERFECT SCORE TECHNOLOGIES
