GLASS WASHER - 60" TANKLESS

Designed for High-Quality Vertical Glass Washing and Drying in IG and Fabrication Lines

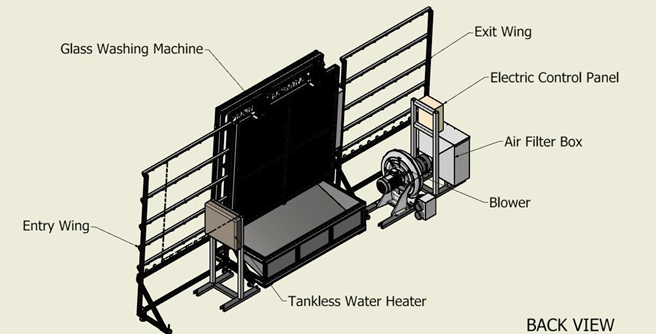

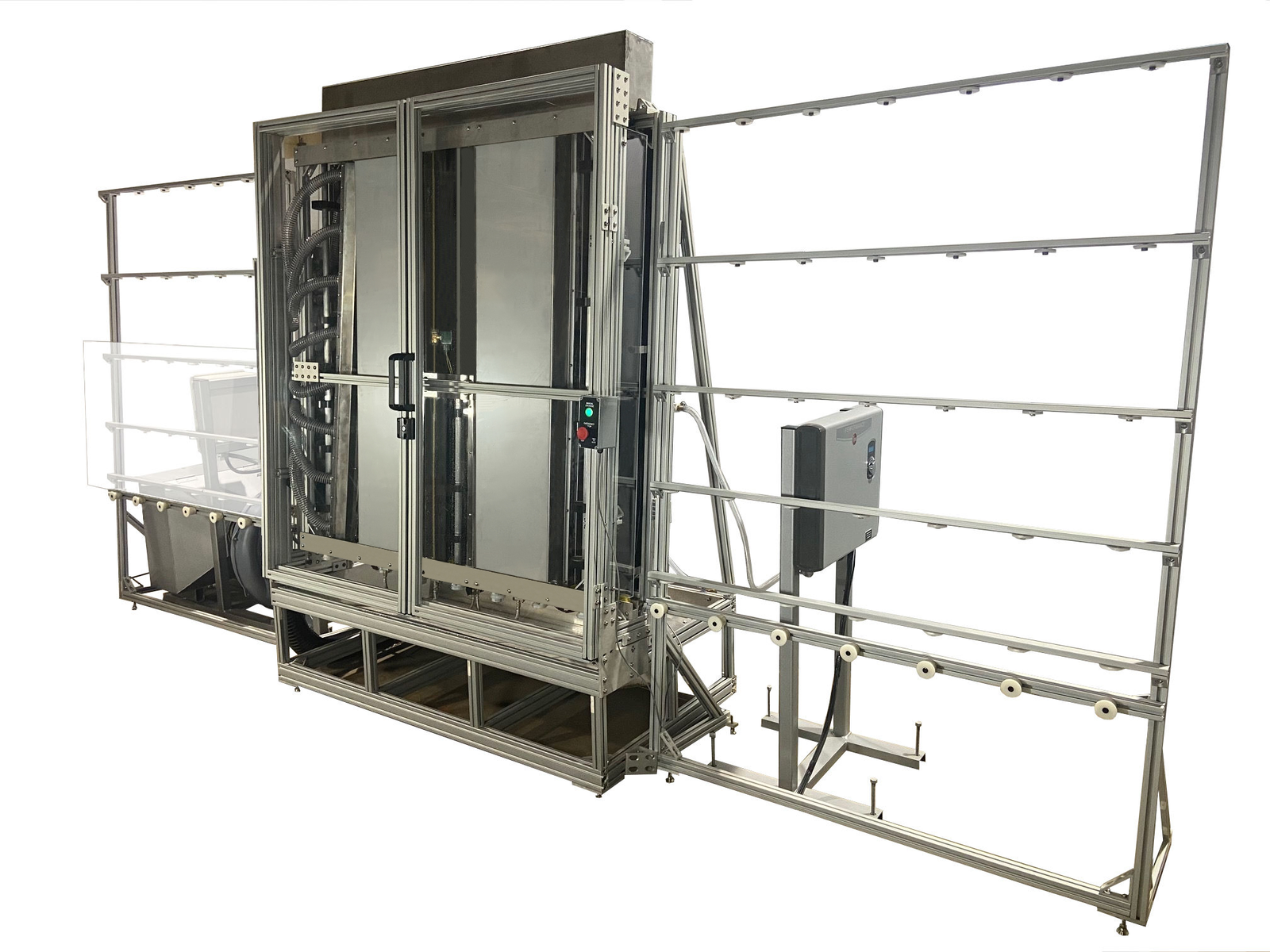

The PST 60" Vertical Open Top Glass Washer (Model VWASH-TL-60) is engineered to deliver consistent, contamination-free glass cleaning for insulated glass and fabrication applications. Featuring a tankless fresh-water system, automated controls, and high-efficiency air knife drying, it eliminates the issues associated with recirculating wash systems. Designed for speed, cleanliness, and reliability, it provides a low-maintenance solution for modern glass processing environments.

Features & Benefits

Designed for vertical washing and drying of glass up to and beyond 60" height.
Fully automatic start, wash, and dry cycle with no operator intervention required.
Tankless fresh-water system eliminates cross-contamination from recycled wash water.
On-demand 130–140°F heated prewash and brush section for optimal cleaning performance.
Automatic soap injection system with adjustable mix control.
Variable speed drive system (0–14 ft/min) for flexible production rates.
High-output 5 HP air knife blower system for efficient drying.
Auto glass height sensors optimize water and air usage for efficiency.
Tool-free adjustment for glass thickness changes (up to 1/2") on the fly.
Low-maintenance design reduces downtime and service requirements.
Open-top configuration accommodates tall glass applications over 60".
Stainless steel and aluminum construction for corrosion resistance and durability.

Technical Highlights

Model: VWASH-TL-60
Configuration: Right-to-left standard (left-to-right optional)
Glass Height Range: 5" minimum (auto-sensed), open top for >60"
Minimum Glass Length: 32"
Line Speed: 0–14 ft/min (variable)
Water Flow: 3–8 GPM (3/4" NPT connection)
Electrical: 230V 3-phase (drive/blower), 230V 1-phase (heater, 150A)
Floor Footprint: 194" L × 54" D
Brushes: Dual Low-E rated stacked brush sets (15" wear sections)
Rollers: 4" urethane pinch rollers
Construction: 304 stainless steel internal components with treated aluminum framing

Why Choose the PST VWASH-TL-60 Vertical Washer?

Eliminates contamination issues common in recirculating water systems.
Provides consistently clean, inspection-ready glass surfaces.
Reduces maintenance costs with a tankless, simplified design.
Improves production efficiency with fully automated operation.
Built for high-volume IG manufacturing and architectural glass processing environments.

Shipping Weights & Dimensions
Pallet A – 1237 lbs., 108 x 86 x 81 (HxWxL)
Pallet B – 506 lbs., 87 x 36 x 56 (HxWxL)
