Features and Specifications
Standard ball caster pitch spacing – 12” x 12”, 6” x 8”, 6” x 6”.
Design working design payload > 20 lbs / sq-ft. Smaller area discrete loading – max 50 lbs / sq-ft
Standard table height 36" ± 2” (34” to 38”).
2” dia ball casters molded from rubber compound to ensure a scratch-free glass environment.
Each ball caster is securely screw-mounted onto the steel frame.
Table top frame fully MIG welded from 2” x 2” heavy wall tubular steel.
Leg height and leveling adjustment ± 2” (1 ¼” dia all-thread jack bolts).
Bolt on legs for ease of shipping will apply to wide table sizes or multiple unit orders.
Industrial paint color: standard PST green or safety blue, custom color match optional.
Options
Custom sizing and featured tables offered made-to-order.
6” floor casters for mobility. (two – rigid, two – swivel w/ lever lock) Add $412.00
Table top cutouts available for operator reach or seamer machinery - cut-out options
Pneumatic tilting ball caster tables – reference PST Model PT-BCT - pneumatic tilt option
Table sizing indicates overall width and length footprint.
Ball caster spacing may vary +/- 1 inch for proper fit within frame.

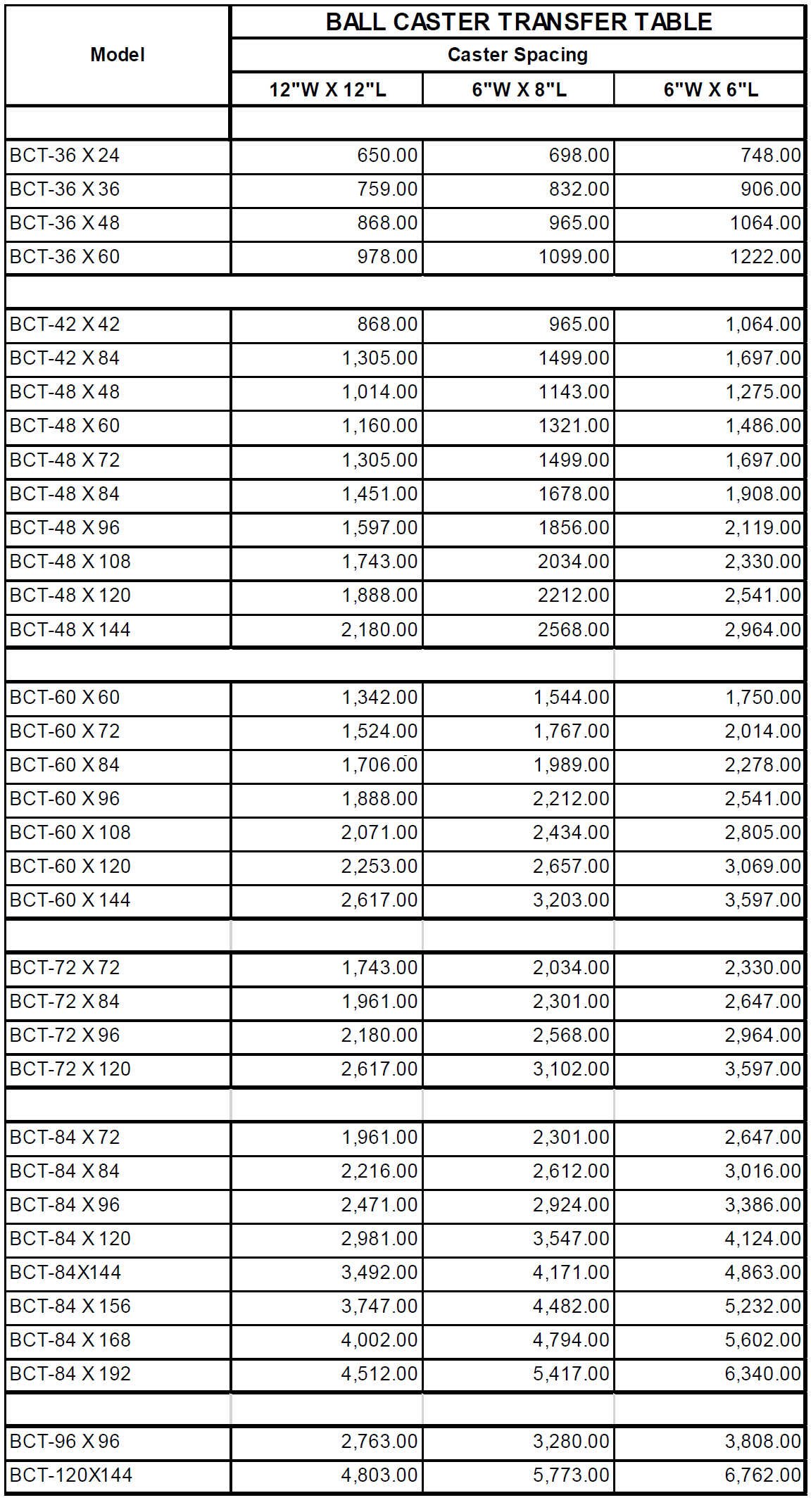

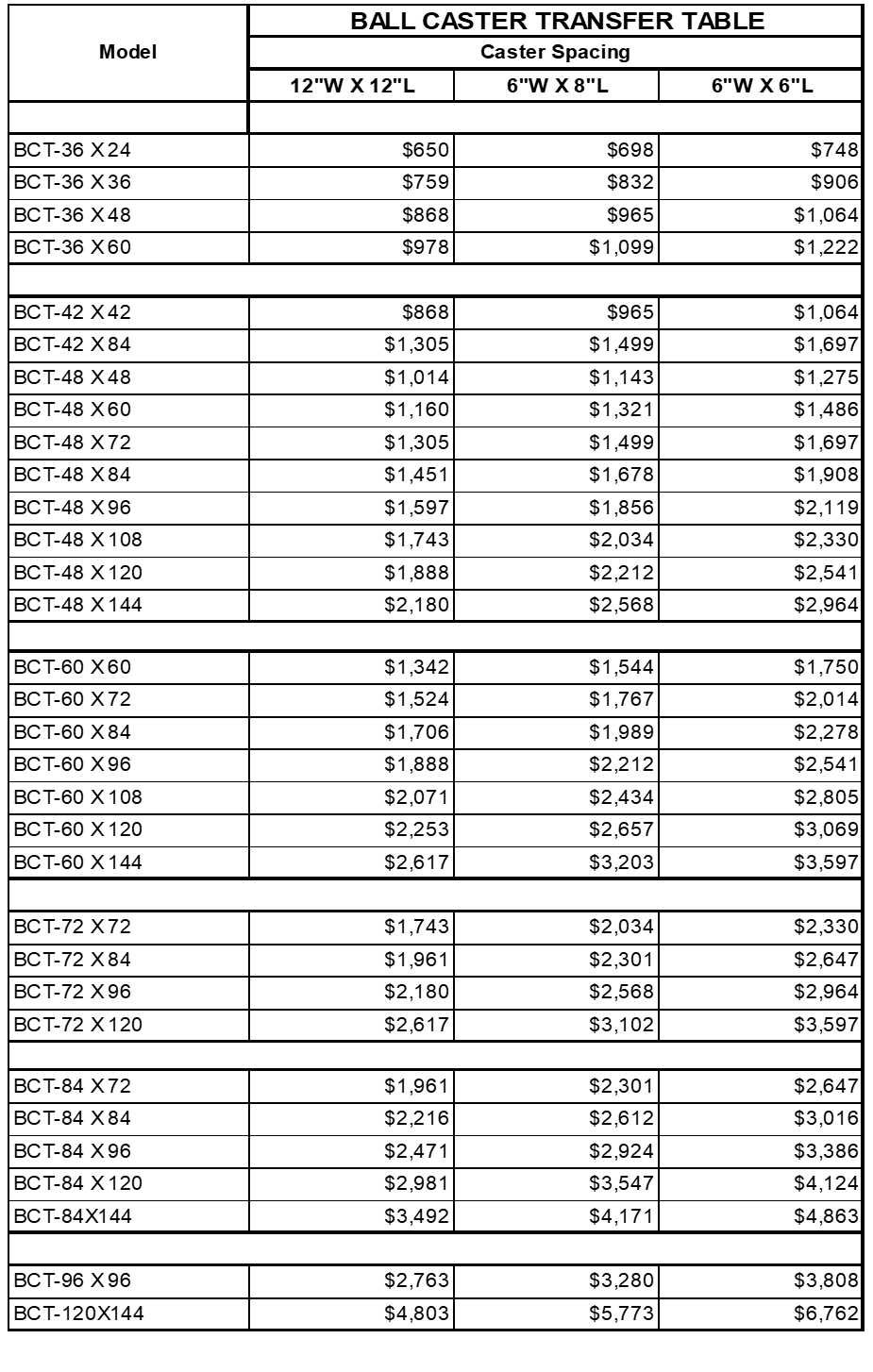

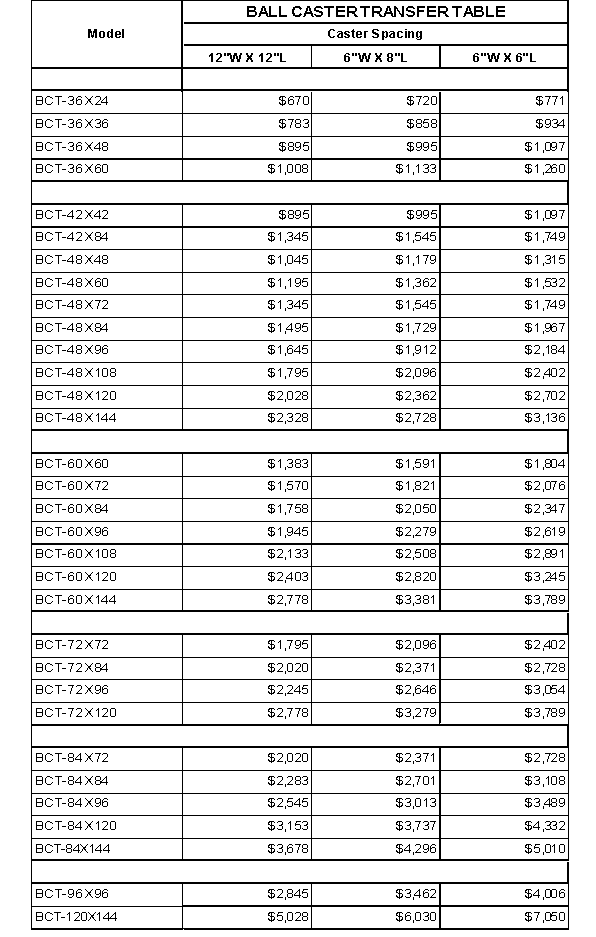

Ordering example for Model BCT-36X24 with 6"X6" caster spacing: BCT-36X24-6X6
BALL CASTER TRANSFER TABLE
