Features and Specifications:

Compatible with diamond, steel, brass tube, spearpoint, and prismatic drills.
Operates on standard 110V electrical service.
Industrial-grade 6-amp drill motor with ball thrust bearings.
Variable speed control from 0–1,400 RPM.
1/2" chuck capacity accommodates hole drills up to 6" diameter.
Dual adjustment system provides both rapid and micro depth adjustments for precise drilling control.
Self-drilling design reduces operator-applied pressure and improves consistency.
Ergonomic compound-action handle.
Non-skid rubber leg caps improve stability and reduce vibration during operation.
Integrated carrying/tote handle for easy transport and field use.
Rugged construction designed to withstand daily shop and service vehicle environments.

Ideal Applications

Glass fabrication shops
Field glazing service work
Shower door installations
Architectural glass drilling
Custom glass and mirror fabrication
Production and maintenance environments requiring accurate hole drilling in glass surfaces

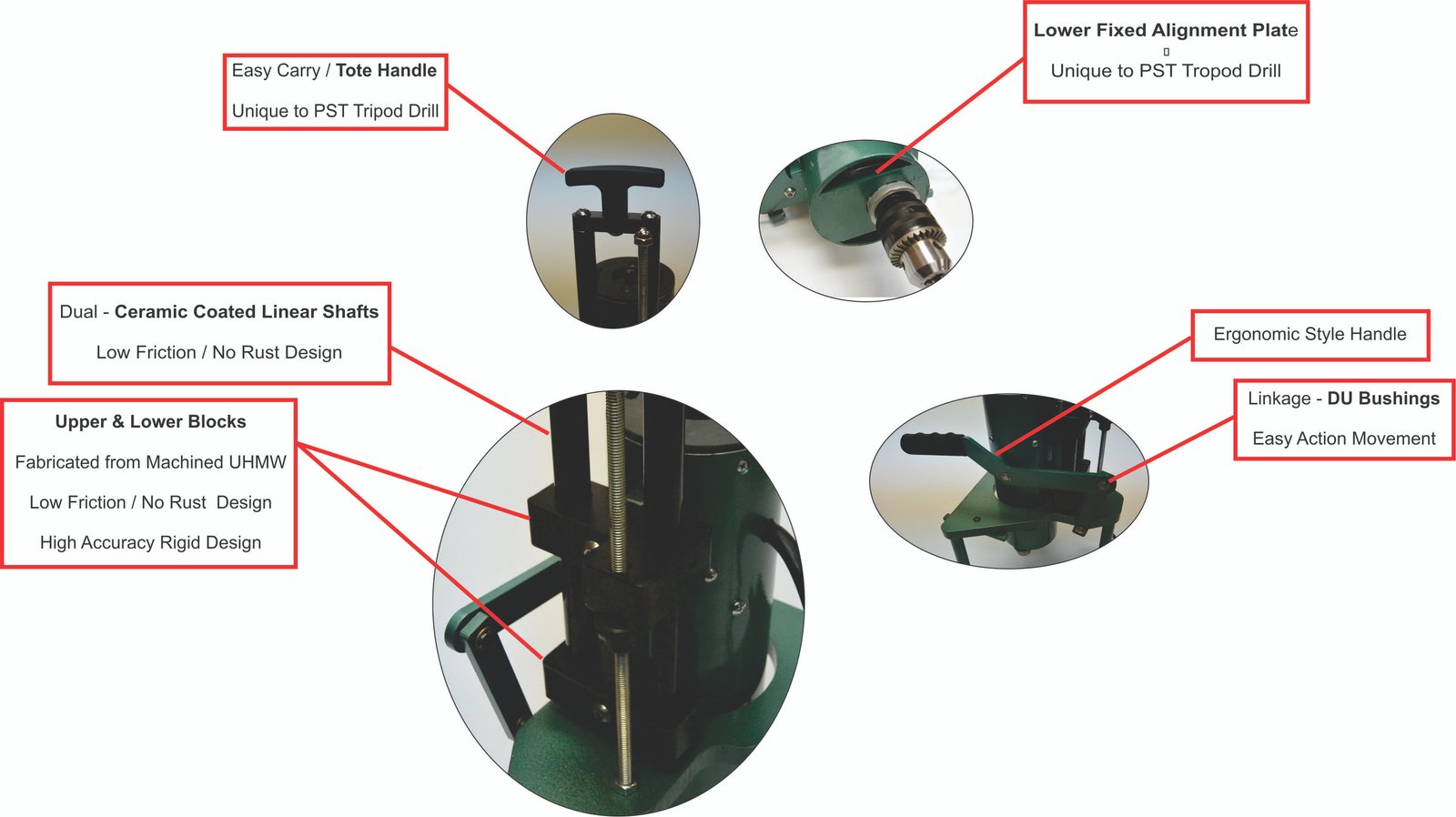

Advantages of the PST Tripod Drill Design

High-precision drilling system engineered for superior hole location accuracy.
Smooth-operating design eliminates the friction and binding commonly associated with guide-way systems.
Reduced maintenance requirements with no ongoing alignment adjustments.
Durable construction designed to tolerate typical field-service handling and transportation.
Engineered for extended service life and long-term reliability.
Factory-direct manufacturing and support.

TRIPOD GLASS DRILL MACHINE

Designed for Glass Fabricators

Designed for professional glass fabrication and field service applications, the PST Portable Glass Tripod Drill delivers accurate, controlled hole drilling in glass using diamond, steel, brass tube, spearpoint, and prismatic drills. Its self-feeding design, precision depth controls, and rugged construction provide superior drilling accuracy while minimizing glass chipping, operator fatigue, and maintenance requirements.

Shipping Specifications: 30 lb, 15 x 15 x 24 (LxWxH) Ships FOB Dallas, TX
