COUNTER BALANCE TABLE

The PST Counter Balance Tilt Top Table is a versatile workstation engineered for manual glass cutting, breakout, and free-fall loading applications. The counterbalanced tilt mechanism allows a single operator to easily transition between horizontal and tilted positions, reducing effort while improving glass handling and productivity. Built with a heavy-duty welded steel frame and available in a wide range of sizes and configurations, the table can be customized with air flotation, breaker bars, and hydraulic tilt to meet virtually any fabrication requirement.

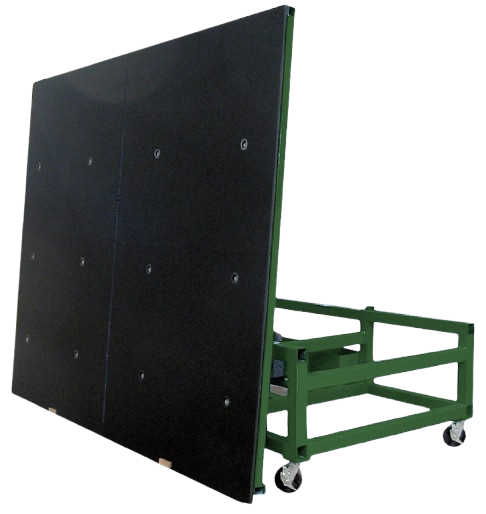

Counter Balance Tilt Top Glass Processing Table

Designed for Manual Glass Cutting, Breakout, and Free-Fall Loading Operations

Standard Features

Counterbalance tilt mechanism for smooth, controlled manual operation.
Heavy-duty 3" × 3" and 3" × 2" all MIG-welded tubular steel frame.
High-density composite tabletop with abrasion-resistant carpet surface.
Retractable glass toe supports for safe loading and positioning.
Heavy-duty swivel casters with floor locks for mobility and stability.
Industrial enamel finish for long-lasting corrosion protection.
Ships knocked down to reduce freight costs; assembly instructions included.

Optional Features

1 HP Random Air Flotation System (12-port) for easy glass movement.
3 HP Random Air Flotation System (16-port) for larger and heavier glass.
Vertical breaker bar.
Horizontal breaker bar.
Combination vertical and horizontal breaker bars.
Hydraulic tilt system with 2 HP power unit and lever control (recommended for applications up to 3/8" glass).
Air flotation baffle gate damper.
Retrofit air flotation kits available for field installation.

Typical Applications

Manual glass cutting
Glass breakout operations
Free-fall loading systems
Glass fabrication and processing
General-purpose glass handling workstations

Why Choose the PST Counter Balance Tilt Top Table?

Combines multiple fabrication functions into one flexible workstation.
Counterbalanced design minimizes operator effort while improving safety.
Configurable with air flotation, breaker bars, and hydraulic tilt to match production requirements.
Modular design allows the table to be upgraded as production needs grow.
Heavy-duty industrial construction delivers years of dependable performance with minimal maintenance.

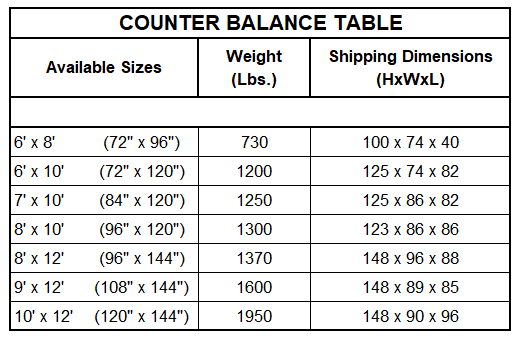

Available Configurations: Models are offered with optional 1 HP or 3 HP air flotation systems, vertical and/or horizontal breaker bars, and hydraulic tilt assistance, allowing customers to select the ideal configuration for their glass size, thickness, and production workflow. The 1 HP air flotation system is recommended for smaller tables and thin-glass applications, while the 3 HP system is ideal for larger table sizes and heavier glass handling.
