ACULITE BULLET COMBO CNC GLASS CUTTING TABLE
PRODUCT DESCRIPTION
FEATURES
The Aculite Bullet Combo scores & edge deletes at a speed of 3,600 + inches per minute and accelerates at 110 inches per second/second. The 3-Axis model allows for full geometric shape cutting/deletion. Aculite Bullet Combo models are available to score sheet size of 72” x 96”, & 102” x 144”.
This CNC high precision glass cutting machine is equipped with a built in glass sheet belt conveyor transfer system plus auto squaring & positioning stops and cuts to tolerance of +/- 1/64” and scores single strength to ½” thick glass ( 2 mm to 12 mm ).
The Aculite Bullet Combo table is driven by state of the art step and direction digital Servo Motor system which has 40% less electronics and electrical wiring than competitive Servo Motor driven tables.
MECHANICAL FEATURES
Fabricated from heavy duty all MIG welded steel construction from 3” x 2” & 3" x 3" heavy wall tubular steel.
SOFTWARE FEATURES

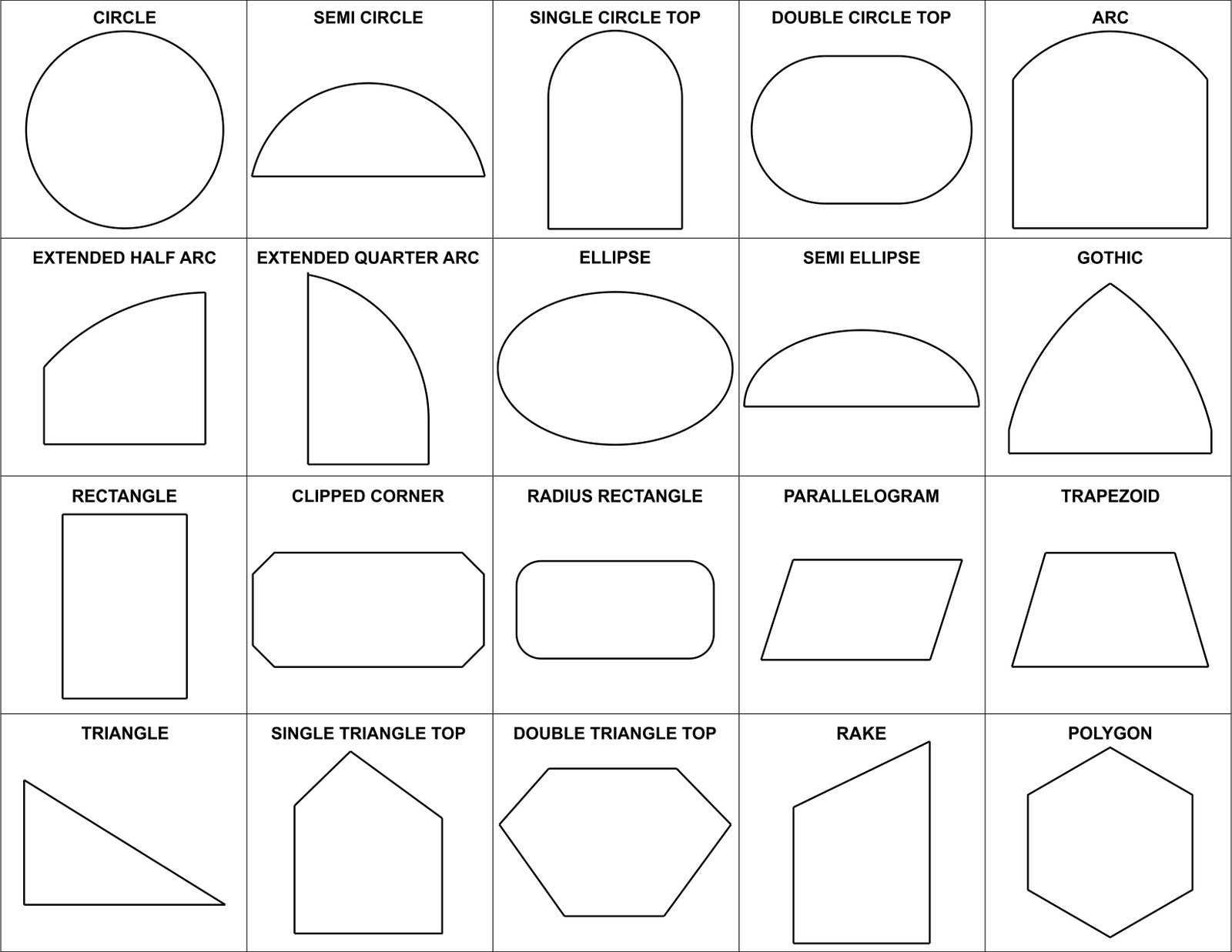

Licensed Aculite software is provided with each system at no additional cost. This high yield software optimizes glass usage over multiple orders, glass sheet sizes and types. The user friendly menu entry library contains twenty two + geometric shapes. All system operating functions are software set, eliminating most mechanical adjustments. Aculite software is equipped for standard DXF file scoring.

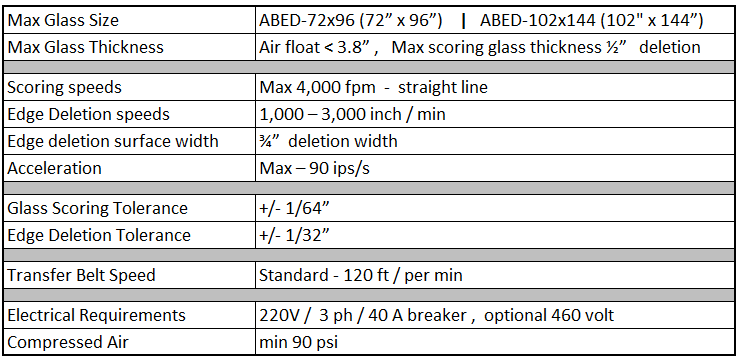

SPECIFICATIONS
Maximum score speeds of 3,600 + inches per minute
Accelerates at 110 inches per second/second
3-Axis for full geometric shape cutting/deletion for XYZ direction scoring
Built-in glass sheet belt conveyor transfer system
Auto squaring & positioning stops
Cuts to a tolerance of +/- 1/64”
Scores single strength to ½” thick glass ( 2 mm to 12 mm ).
Driven by a high resolution/high torque digital step and direction Servo Motor system
OPTIONS
Complete cutting system consists of:
Aculite Bullet Combination Cutting/Edge Deletion Table
Free Fall Table
Break Out Table
Break Out Sorting Monitor System
Free Fall Racks
Harp Storage Racks

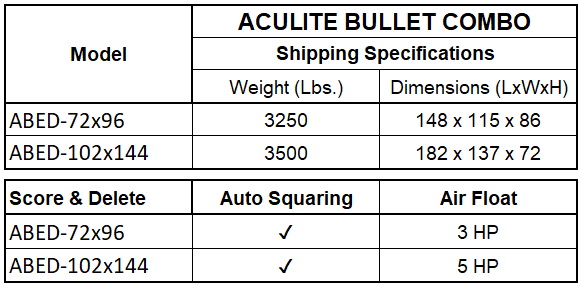

Available to score sheet sizes of:
72” x 96”
102” x 144”
The complete line is available with standard free fall loading or with automatic multiple station free fall loading.
Ships FOB Dallas, TX
© COPYRIGHT 2014 ALL RIGHTS RESERVED PERFECT SCORE TECHNOLOGIES
The Aculite Bullet Combo is a CNC high precision glass shape cutting & deletion table designed for high-speed and high volume glass cutting.
FEATURES
The Aculite Bullet Combo scores & edge deletes at a speed of 3,600 + inches per minute and accelerates at 110 inches per second/second. The 3-Axis model allows for full geometric shape cutting/deletion. Aculite Bullet Combo models are available to score sheet size of 72” x 96”, & 102” x 144”.
This CNC high precision glass cutting machine is equipped with a built in glass sheet belt conveyor transfer system plus auto squaring & positioning stops and cuts to tolerance of +/- 1/64” and scores single strength to ½” thick glass ( 2 mm to 12 mm ).
The Aculite Bullet Combo table is driven by state of the art step and direction digital Servo Motor system which has 40% less electronics and electrical wiring than competitive Servo Motor driven tables.
MECHANICAL FEATURES
Fabricated from heavy duty all MIG welded steel construction from 3” x 2” & 3" x 3" heavy wall tubular steel.
SOFTWARE FEATURES
Licensed Aculite software is provided with each system at no additional cost. This high yield software optimizes glass usage over multiple orders, glass sheet sizes and types. The user friendly menu entry library contains twenty two + geometric shapes. All system operating functions are software set, eliminating most mechanical adjustments. Aculite software is equipped for standard DXF file scoring.
SPECIFICATIONS
Maximum score speeds of 3,600 + inches per minute
Accelerates at 110 inches per second/second
3-Axis for full geometric shape cutting/deletion for XYZ direction scoring
Built-in glass sheet belt conveyor transfer system
Auto squaring & positioning stops
Cuts to a tolerance of +/- 1/64”
Scores single strength to ½” thick glass ( 2 mm to 12 mm ).
Driven by a high resolution/high torque digital step and direction Servo Motor system
OPTIONS
Complete cutting system consists of:
Aculite Bullet Combination Cutting/Edge Deletion Table
Free Fall Table
Break Out Table
Break Out Sorting Monitor System
Free Fall Racks
Harp Storage Racks
Available to score sheet sizes of:
72” x 96”
102” x 144”
The complete line is available with standard free fall loading or with automatic multiple station free fall loading.
Ships FOB Dallas, TX
© COPYRIGHT 2014 ALL RIGHTS RESERVED PERFECT SCORE TECHNOLOGIES
