Features & Benefits

Designed for vertical inspection and quality control of glass surfaces.
Fully welded structural steel frame for maximum strength and durability.
Equipped with 8 high-output inspection lights (512 watts total) for clear defect visibility.
Non-scratch neoprene vertical ball casters protect glass surfaces during handling.
Horizontal neoprene rollers support smooth, controlled glass movement.
Mobile design with 6" locking floor casters for easy positioning and stability.
White-painted frame and inspection background enhance defect visibility.
Adjustable glass loading height for operator comfort and flexibility.
Supports glass loads up to 700 lbs (3/4" plate glass capacity).

Technical Highlights

Model: VGIU
Frame Width: 110"
Frame Depth: 40"
Overall Height: 94"
Glass Inspection Height: 76"
Loading Height: 18" ± 3" adjustable
Weight Capacity: 700 lbs
Electrical: 120V / 5 amps
Lighting: 8 inspection lights (512W total)
Mobility: 6" locking casters
Shipping Specifications: 840 Lbs., 110 x 40 x 94 (LxWxH)

Why Choose the PST Vertical Glass Inspection Unit?

Improves detection of surface defects and coating inconsistencies.
Enhances operator efficiency with optimized lighting and viewing angles.
Protects glass surfaces with non-scratch support systems.
Provides a stable, heavy-duty inspection platform for large glass lites.
Designed for continuous industrial use in demanding quality control environments.

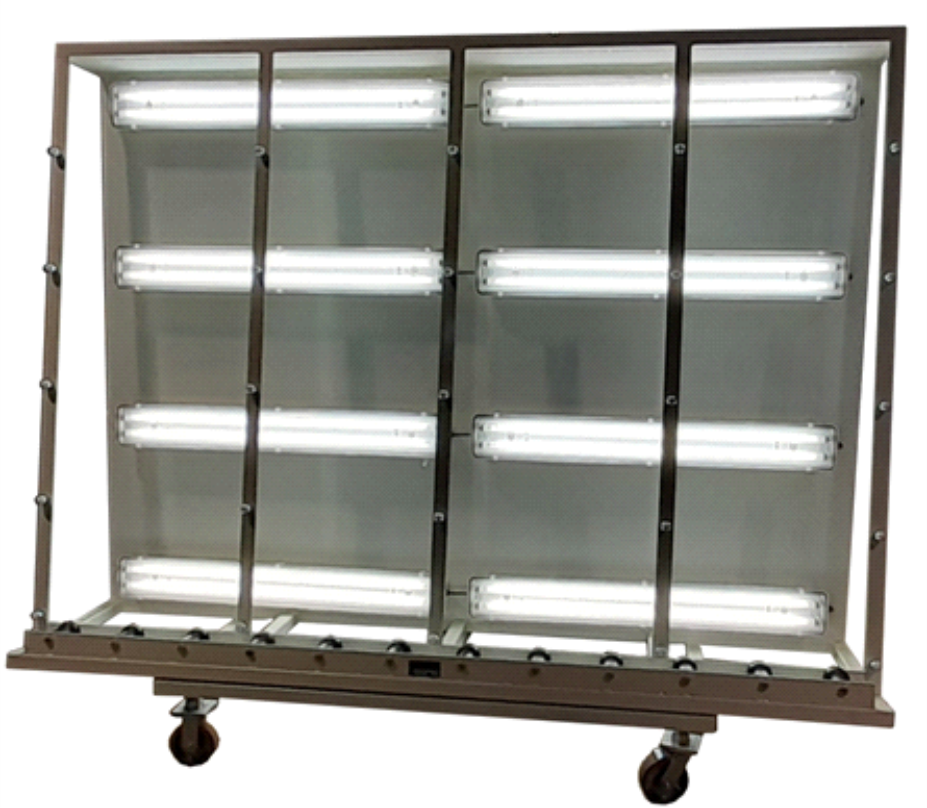

VERTICAL GLASS INSPECTION UNIT

Designed for Vertical Glass Inspection, Quality Control, and Surface Defect Detection

The PST Vertical Glass Inspection Unit (VGIU) is engineered to provide a stable, well-lit, and ergonomic workstation for inspecting glass surfaces for defects, scratches, and coating irregularities. Built with a heavy-duty welded steel frame and equipped with high-intensity inspection lighting, it delivers consistent visibility and handling support for high-quality glass evaluation in production environments.
